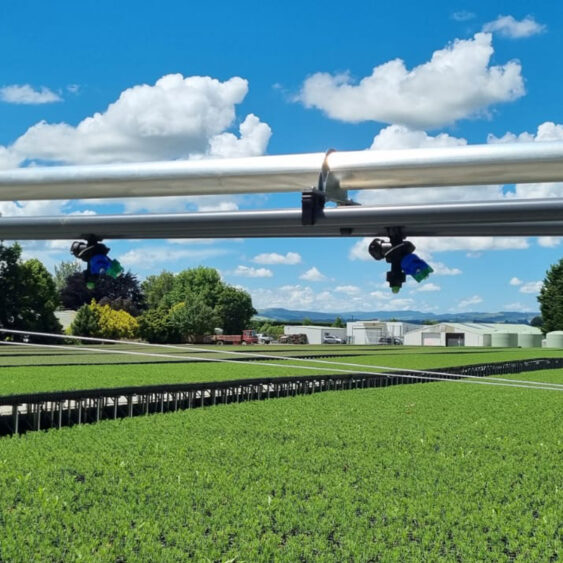

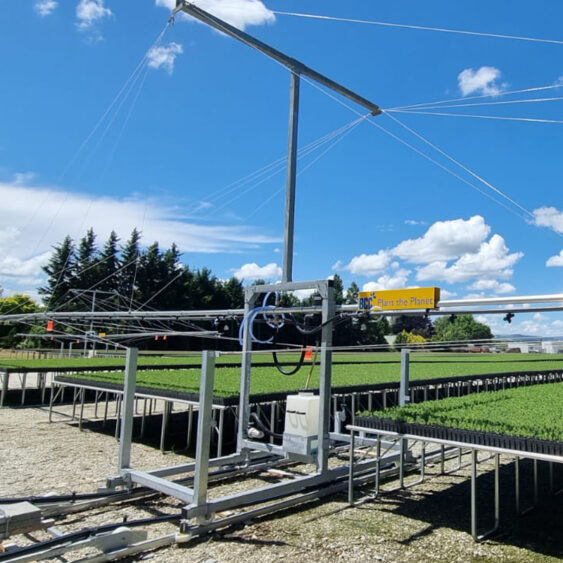

Designed for precision and reliability, the Holding Area Irrigation Booms deliver consistent water application to ensure optimum plant growth and even development throughout the propagation period. These booms guarantee that every plant receives the right amount of water at the right time, reducing moisture stress and supporting healthier, more uniform crops.
Built on a modular design, the system is flexible and can be customised with features to suit your nursery’s specific growing requirements.
KEY FEATURES

• Even and accurate water application for containerised forest nurseries
• Modular system for flexible configuration
• Reliable operation with variable speed control
• Custom sizes available on request

SPECIFICATIONS

• Holding Area Booms: 120m effective length (128m total), standard 32m width (custom sizes available on request)

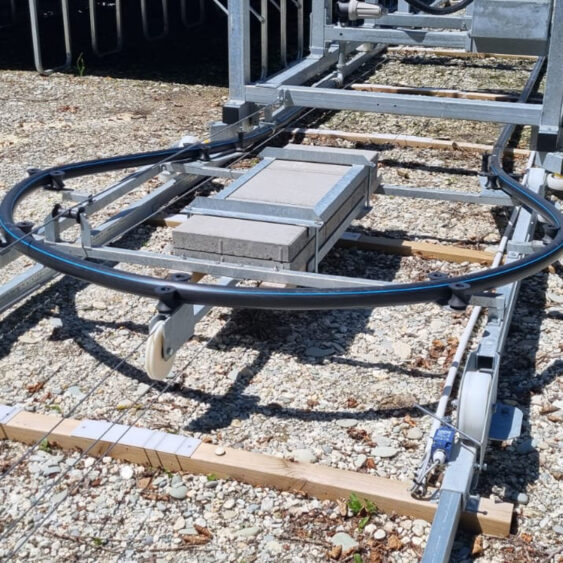

• Holding Area Booms with hose car: 180m effective length (190m total), up to 38m width
• Combi Booms: 105m effective length (110m total), up to 15m width
• Power supply: 1x 230V, 50Hz (depends on requirement)
• Power requirement: 0.5kW
• Operating pressure: 2–3 Bar (recommended in spray line)
• Water supply pressure: 5–6 Bar (recommended at connection point)
• Operating speed: Variable, 0–10m/min
