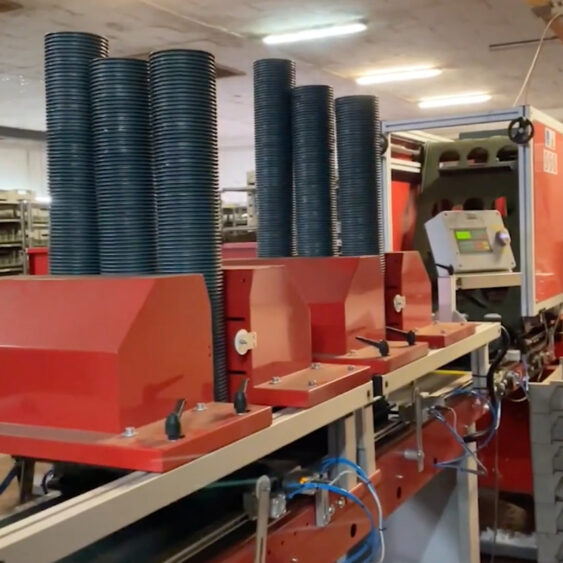

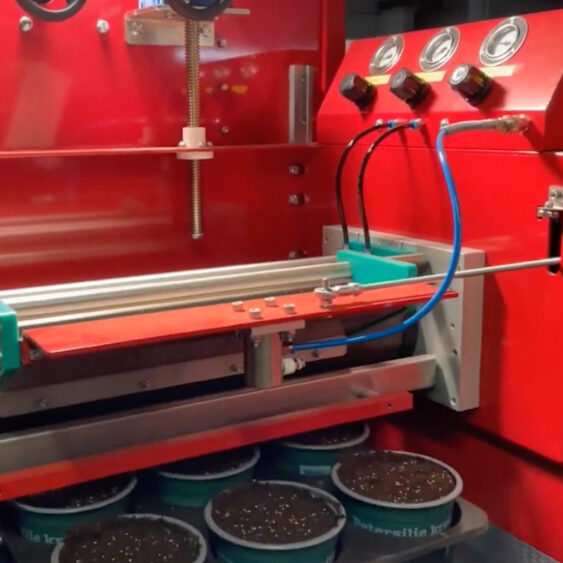

The Da Ros Trayfiller RC5 is a precision tray filling machine designed to cleanly and efficiently fill pots in shuttle trays. Featuring a perforated special belt system, the RC5 ensures uniform media distribution while minimising waste and spillage.

Mechanical speed adjustment of the paddles, transport belt and vibrator allows operators to fine-tune peat density to suit different media types and tray formats. The integrated electronic control automatically loads peat into the filling head, supporting smooth, continuous operation.

The RC5 can feed directly into seeding or transplanting lines, eliminating the need for tray storage and improving overall productivity.

KEY FEATURES

• Production capacity up to 600 trays per hour

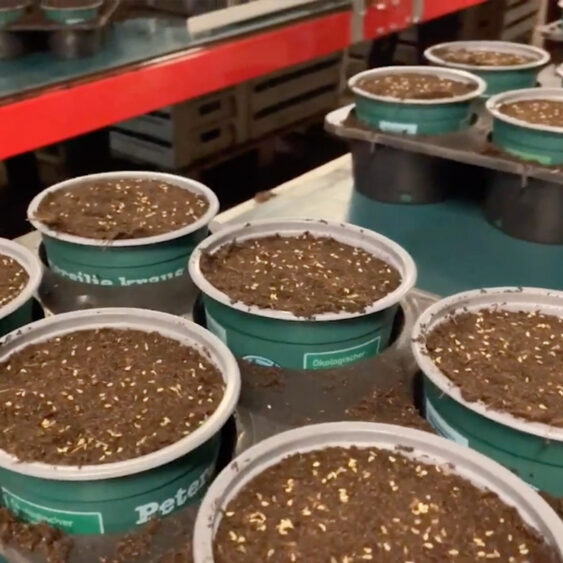

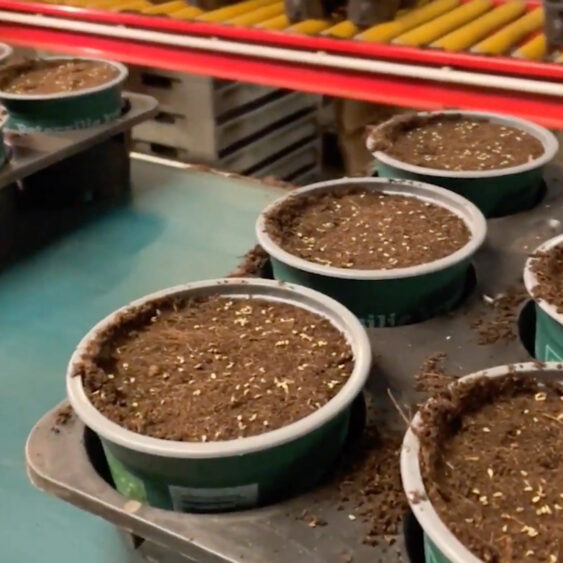

• Clean and precise filling of pots in shuttle trays

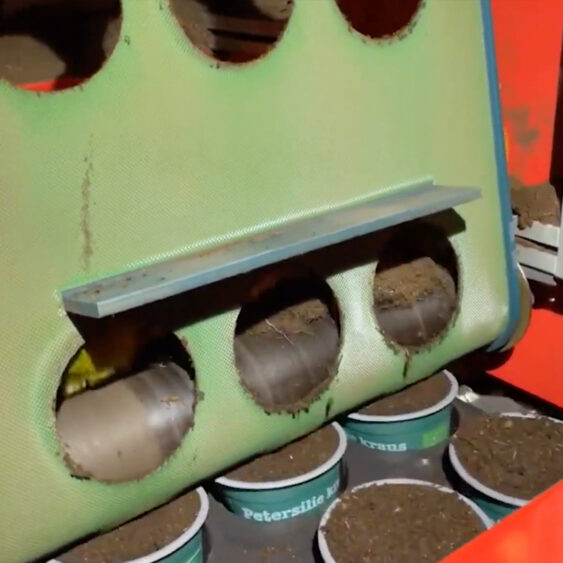

• Perforated special belt for uniform media distribution
• Adjustable paddles, belt and vibrator for peat density control
• Electronic control for automatic peat loading
• Reduces waste with bottom belt recovery system
• Can feed directly into seeding or transplanting lines

MACHINE COMPOSITION

• Soil hopper

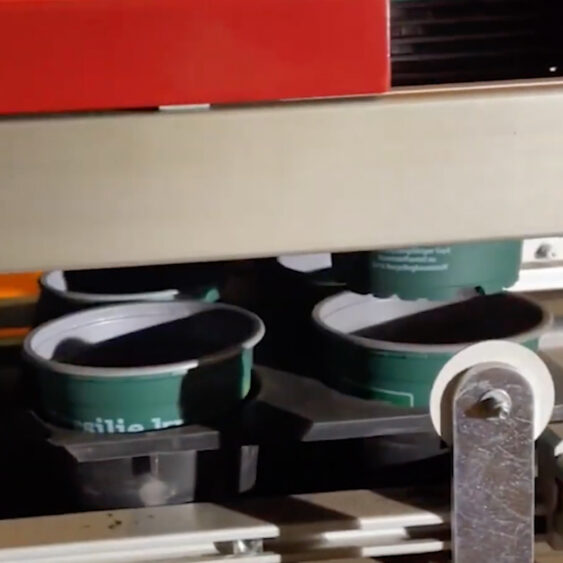

• Tray transport belt
• Vibrator

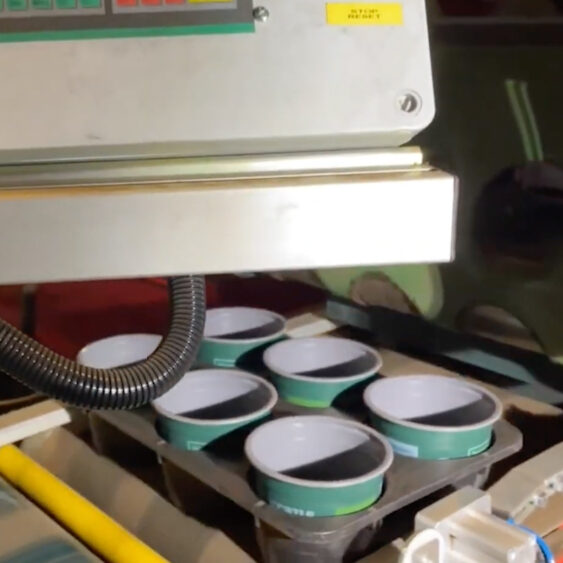

• Filling head
• Rotating brush group
• Bottom belt to recover excess soil

ACCESSORIES

• Mask belt according to tray format

TECHNICAL DATA

• Hopper capacity: 700–1000L
• Maximum tray size: 600 x 400 x 130mm
• Installed power: 2.3kW, 400V, 3PH+N+E, 50Hz
• Weight: 470–525kg
