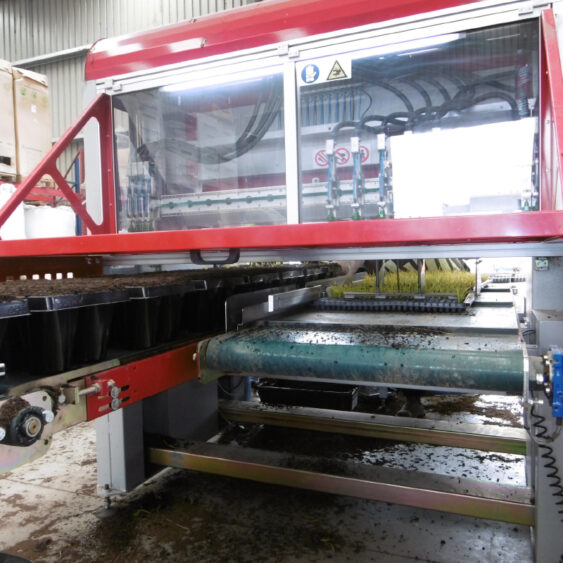

Electronic transplanting machine to transplant into trays. The machine can be equipped with max 16 self-driving doublemovement fingers for homogeneous transplanting.




The easy and quick adjustments enable this machine to be quickly adapted to all types of donor trays in transplanting. Whatever is the pattern combinations of the trays to work with, the special software always allows the total emptying of the plants from the donor trays. Setting like: working speed, pick up and transplanting depth, plants height, side way pick up, etc. are easily settable without machine stop, directly from the control panel provided of colour touch screen display. The transplanting machine can be connected to a trayfiller.




MACHINE COMPOSITION

• Support frame
• Finger group holding axle

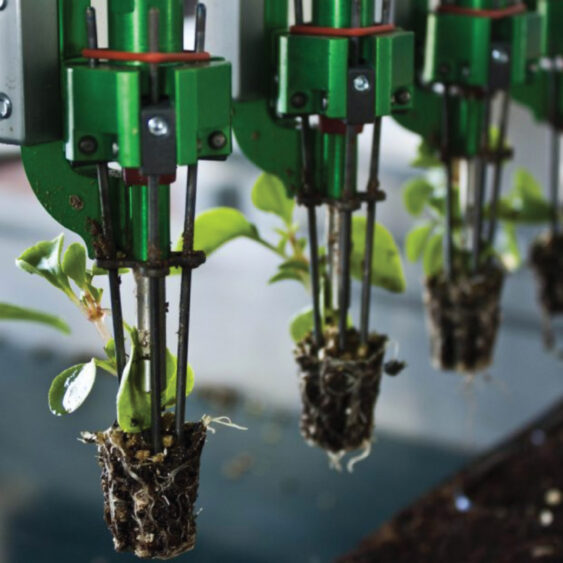

• Independent self-driven double-movement fingers
• Tray transport belt in pick up, 700mm width
• Tray transport belt in deposit, 700mm width
• Plate to collect transplanted trays

ACCESSORIES

• Tray inserter mod. ICR
• Tray inserter mod. IC2
• Watering belt mod. NB4

TECHNICAL DATA:

• Transplanting Capacity: Up to 1200 plants per hour per finger
• Number of Fingers: Up to 16
• Maximum Trays Size in Pick-Ip and Desposit: 700x500x130 mm
• Installed Power: 1,2 kW, 230 W, 1Ph, 50 Hz
• Air Consumption: 100 L per minute ca.
• Weight: 600 kg
