DaRos Trayfiller RC7
# 16-DARRC7TR41N-M

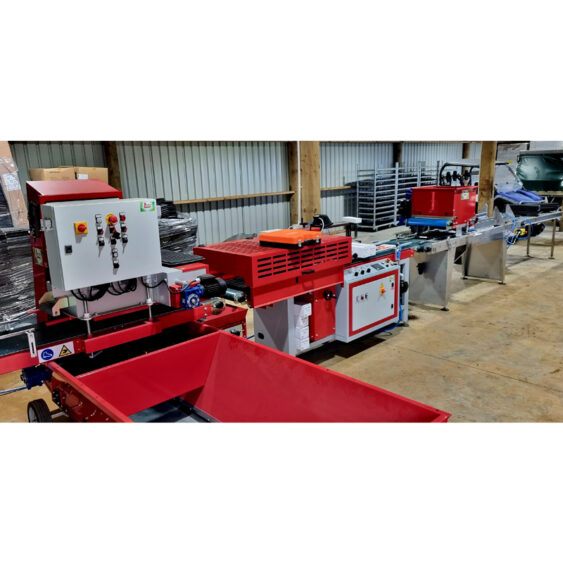

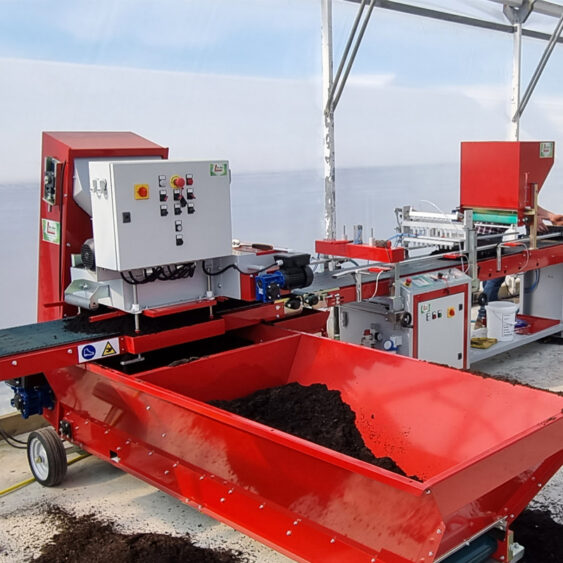

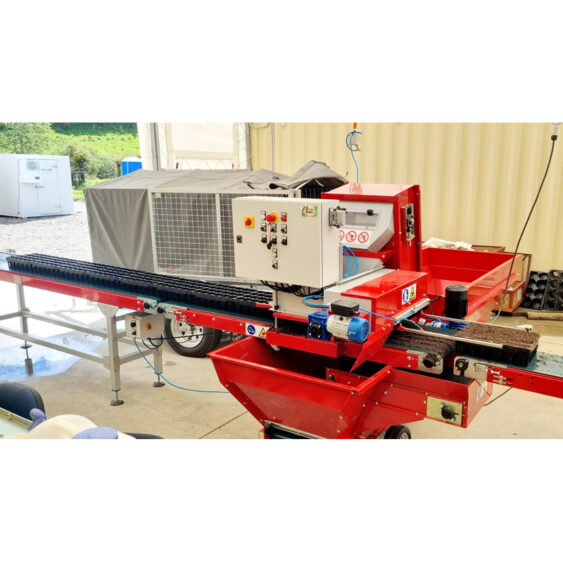

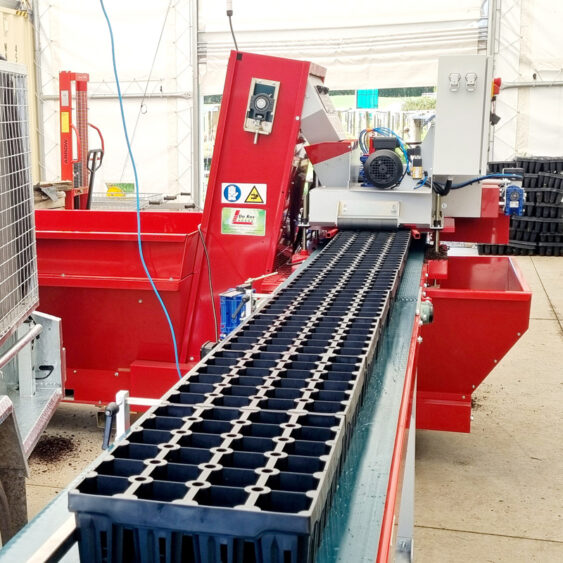

Machine for filling polystyrene and plastic trays and pots completely inside shuttle trays.
The filling system used here allows homogeneous filling into several types of trays also with small cell sizes. Thanks to the electronic speed adjustment, both of compaction rotor, transport belt and vibrator, it is possible to adjust the density of filling. The trayfiller is equipped with level sensor to load automatically the peat into the filling head. The machine can feed directly a seeding line or a transplanter avoiding handling and storage of trays.
MACHINE COMPOSITION
ACCESSORIES
TECHNICAL DATA:
The filling system used here allows homogeneous filling into several types of trays also with small cell sizes. Thanks to the electronic speed adjustment, both of compaction rotor, transport belt and vibrator, it is possible to adjust the density of filling. The trayfiller is equipped with level sensor to load automatically the peat into the filling head. The machine can feed directly a seeding line or a transplanter avoiding handling and storage of trays.
MACHINE COMPOSITION

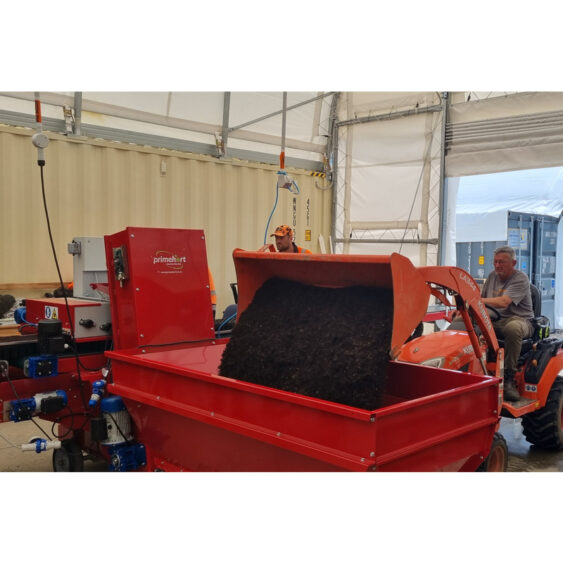

- Hopper
- Soil outlet with mill
- Tray transport belt
- Vibrator
- Filling head
- Rotating brush group
- Bottom belt to recover exceeding of soil
ACCESSORIES
- Destacker for polystyrene trays and trays with inserted packs mod. DC2L
- Adjustable destacker for polystyrene trays and trays with inserted packs mod. DC2R
- Automatic thermoformed tray destacker mod. DC500
- Automatic pot destacker mod. DV500
- Automatic pot destacker mod. DV500
- Vibrating table
- Air cleaning nozzles and brushes
TECHNICAL DATA:
- Production Capacity: Up to 800 trays per hour
- Hopper Capacity: 700 to 1000 L

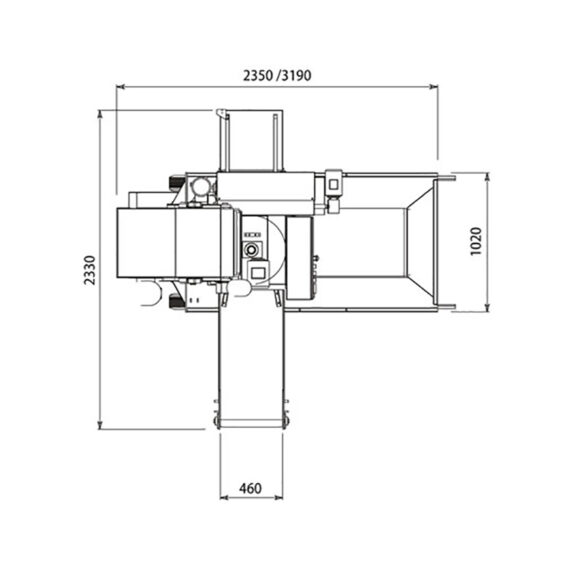

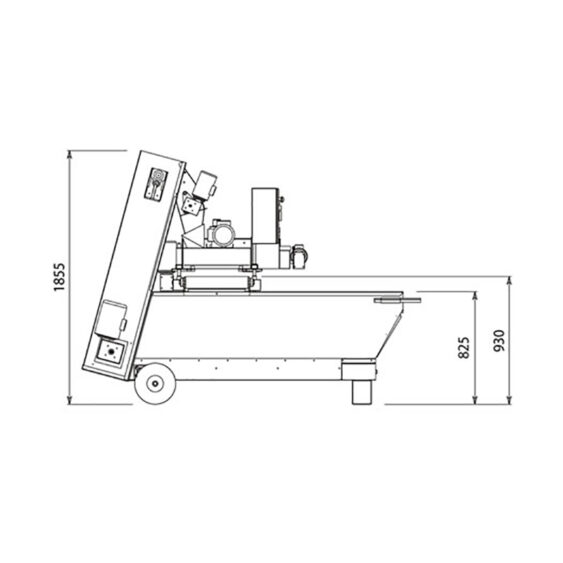

- Maximum Tray Size: 600x400x130 mm
- Installed Power: 2,7 kW, 44 V, 3PH+N+E, 50 Hz
- Weight: 590 to 665 Kg
