The benefits of a Da Ros Transplanter TP-MT are compelling for efficiency, precision planting, reduced labour costs, and improvements to productivity. Customers using this innovative machine to streamline the planting process are gaining uniformity in plant spacing and depth, leading to consistent, healthier growth. A quality Da Ros Transplanter TP-MT allows growers to handle larger volumes of plants and scale-up their operations.
Our specialised Nursery Automation team can install, provide staff training and strong after-sales care. Get in touch to find out more.

FEATURES

• Effortlessly transplant into Trays or Nursery Pots.
• Can be equipped with 10 self-driving double-movement fingers for uniform transplanting.
• Fingers operate parallel to the belt working direction.
• Easy adjustments enable this machine to quickly adapt to most grades of Nursery Trays and Pots.
• Customised software always allows complete emptying of the plants from the donor trays.
• Adjustable settings to suit working speed, pick-up and transplanting depth, plants height, side way pick up and more. All settings are adjustable from the colour touch screen control panel without stopping the machine.
• The transplanting machine can be connected to a Potting Machine or Trayfiller.

MACHINE COMPOSITION

• Support frame

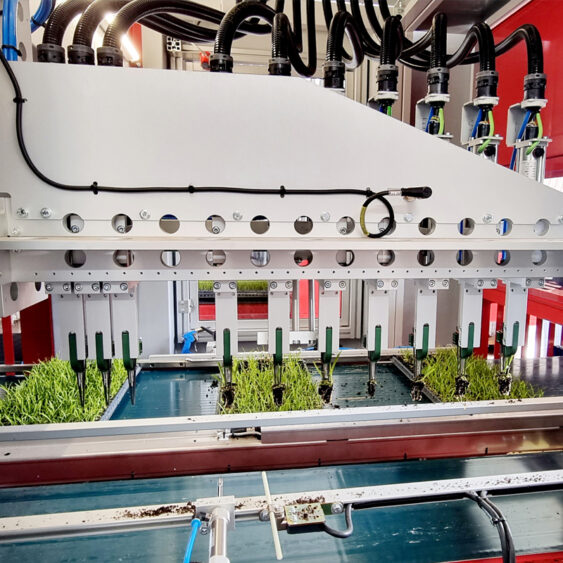

• Finger group holding axle

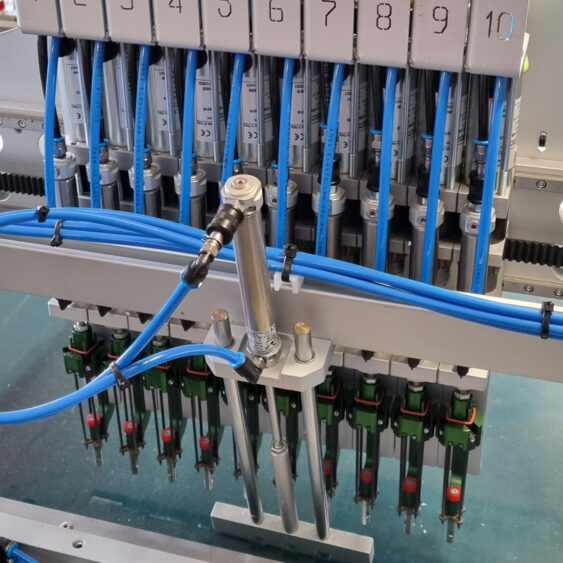

• Independent self-driven double-movement fingers
• Tray transport belt in pick up 700mm width
• Tray or pots transport belt in deposit

ACCESSORIES

• Pot spacer

TECHNICAL DATA

• Transplanting Capacity: 1000 to 1200 plants per hour per finger
• Number of Fingers: 3 to 10
• Maximum Trays Size in Pick-Up and Deposit: 700x500x130 mm
• Maximum Size of Pots: 1 row - 19cm
• Maximum Size of Pots: 1 row - 14cm
• Installed Power: 2kW, 400 V, 3PH+N+E, 50 Hz
• Air Consumption: 50 to 120 L per minute
• Weight: 900 kg
