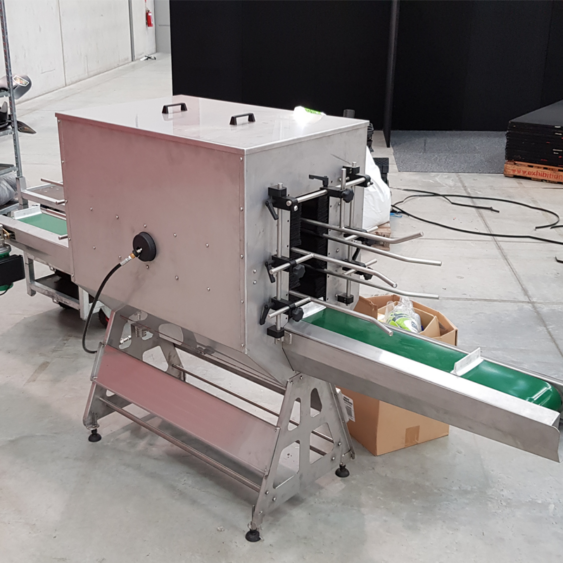

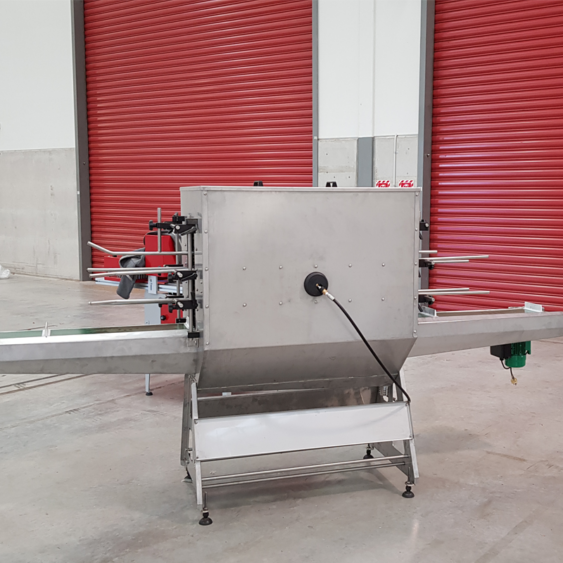

The Tray Washer MINI is a compact, maintenance-free tray cleaning solution designed for nurseries requiring efficient and reliable hygiene control. Suitable for virtually all tray types and sizes, this streamlined machine helps protect crop health by removing residual soil and contaminants before trays are reused.

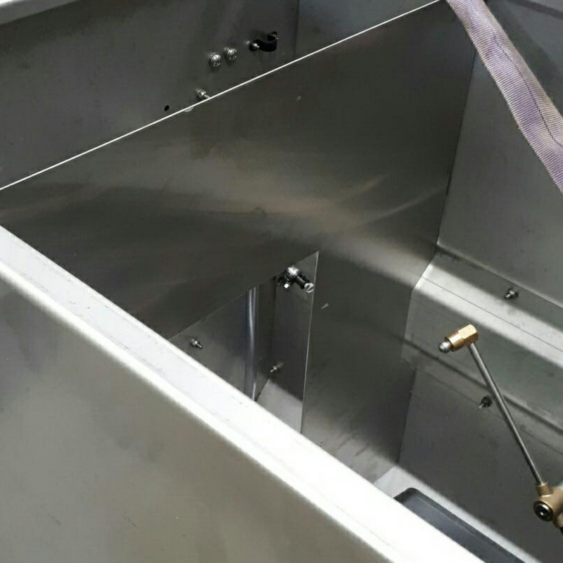

Constructed from 316 marine grade stainless steel, the Tray Washer MINI is built for durability in nursery environments. Two fast-rotating internal spray arms, powered by a high-pressure pump, deliver thorough cleaning performance. In a separate chamber, trays can be sterilised with an optional treatment spray to further reduce disease risk.

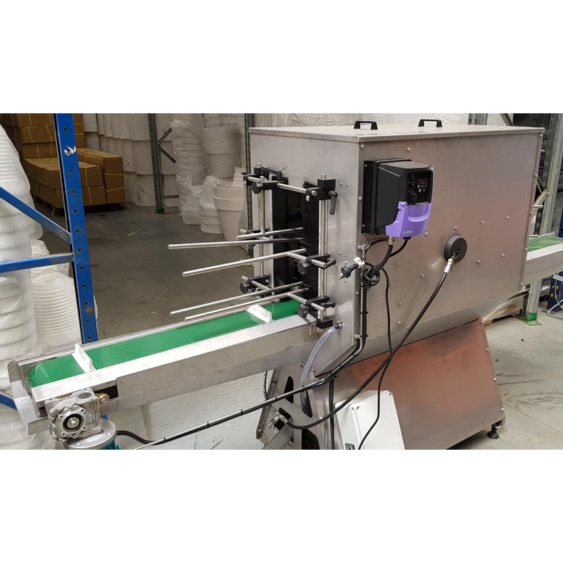

The continuous conveyor belt features a cleated profile for secure tray movement, with optional adjustable speed available. Designed for simplicity and ease of operation, the MINI offers an effective tray washing solution without complex maintenance.

KEY FEATURES

• Capacity: Up to 400 trays per hour (depending on tray type)
• Suitable for virtually all tray types and sizes
• Built from 316 marine grade stainless steel
• Maintenance-free, simple-to-use design
• Separate sterilisation chamber option
• Cleated conveyor belt for secure tray transport
• Standard water blaster connection point
• Inspection lid cover for easy access

SPECIFICATIONS

• Equipped with 1 single phase 230V motor

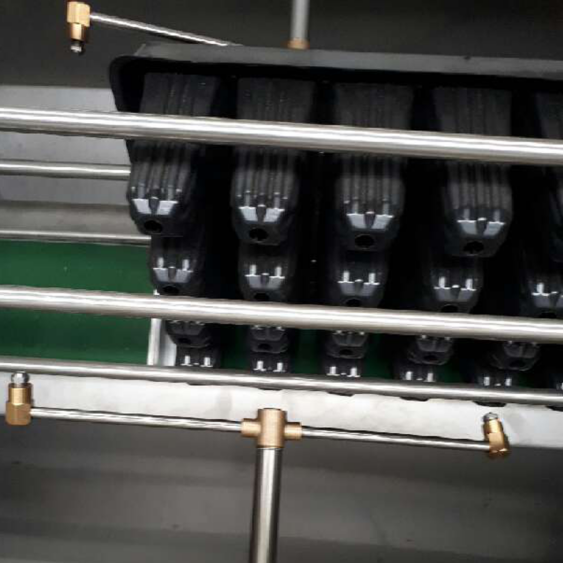

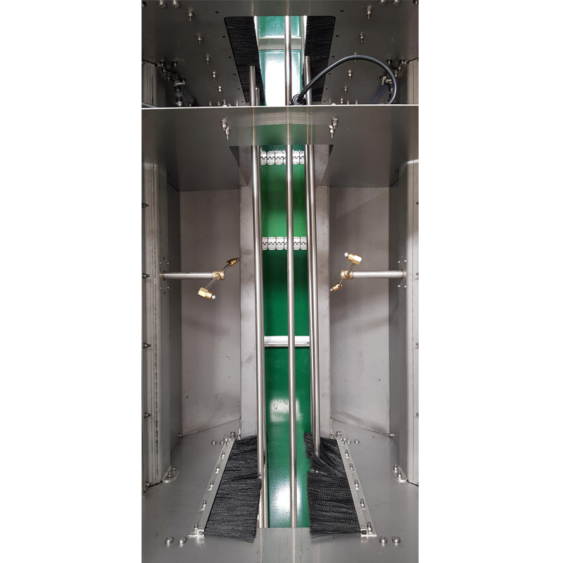

• Two internal rotating spray arms with dual jet nozzles
• Adjustable tray supports
• Water drainage hose
• Fixed speed conveyor (variable speed optional)

OPTIONAL

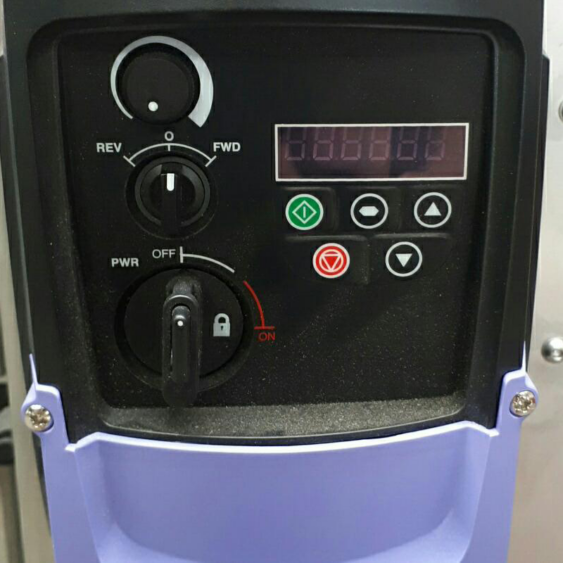

• Variable speed conveyor

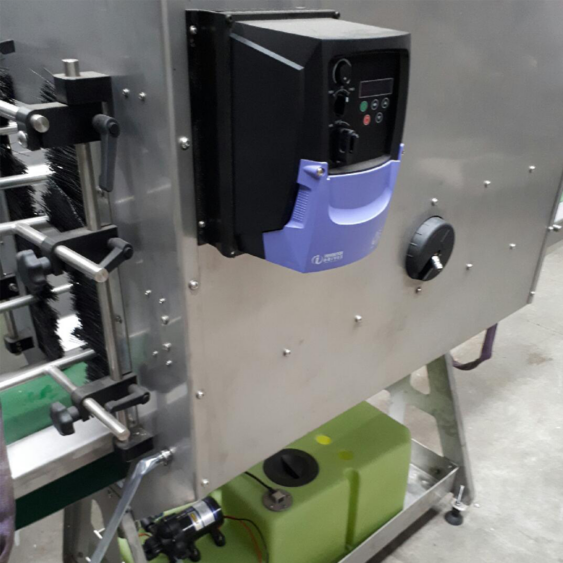

• Spray treatment and treatment tank
• 15LPM, 4000psi, 13HP water blaster available on request

TECHNICAL DATA

• Dimensions: 2965L x 660W x 1480H
• Installed power: 230V, single phase
• Operating pressure: 2800psi, 20Lpm
