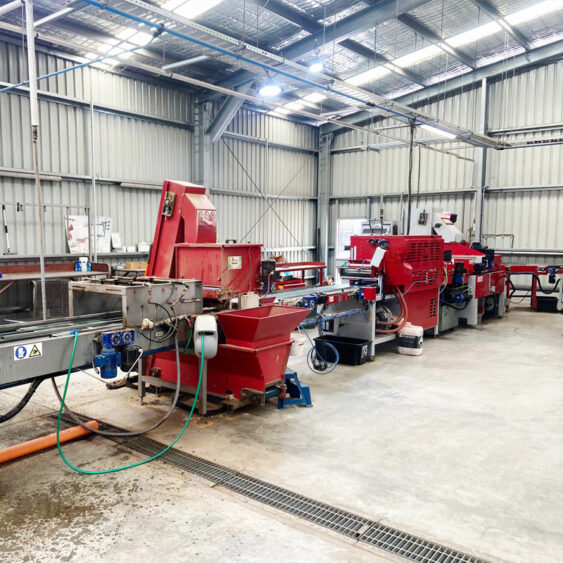

High capacity electronic sowing line suitable for sowing up to 1200 trays per hour.

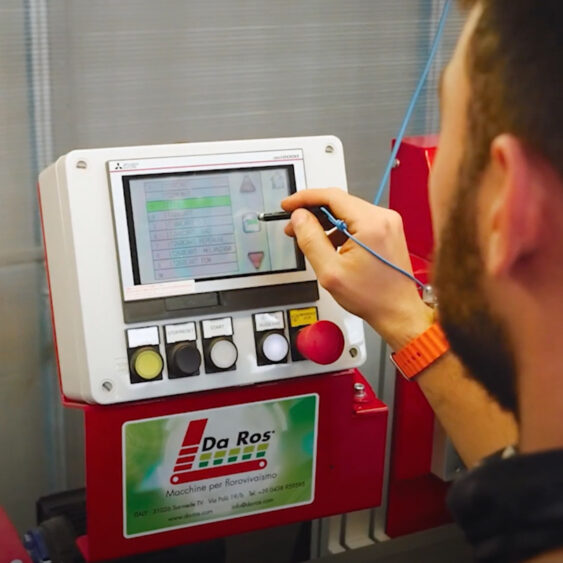

All the main working adjustments of the line are controlled from the central touch-screen display. The special software installed allows the storage of sowing preferences according to seed type and sowing quality.




Changes made at the central touch-screen pad can control all equipment including tray destacking, tray filling speed, sowing preferences, covering, watering and tray stacking.




STANDARD LINE COMPOSITION

• Tray De-stacker (for polystyrene trays)

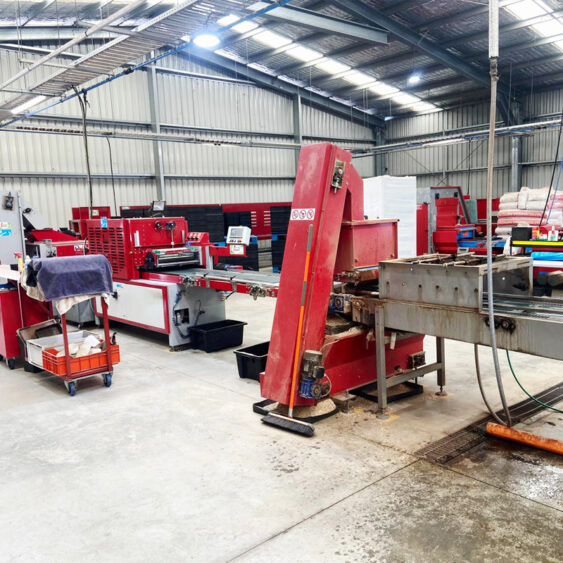

• RC1200 Tray Filler with 650L hopper

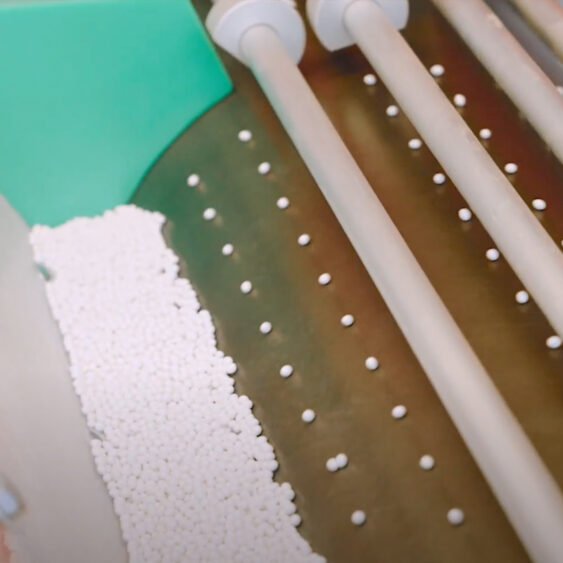

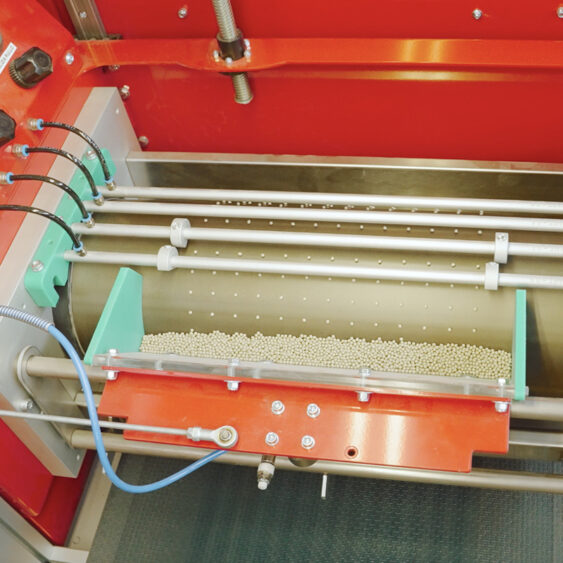

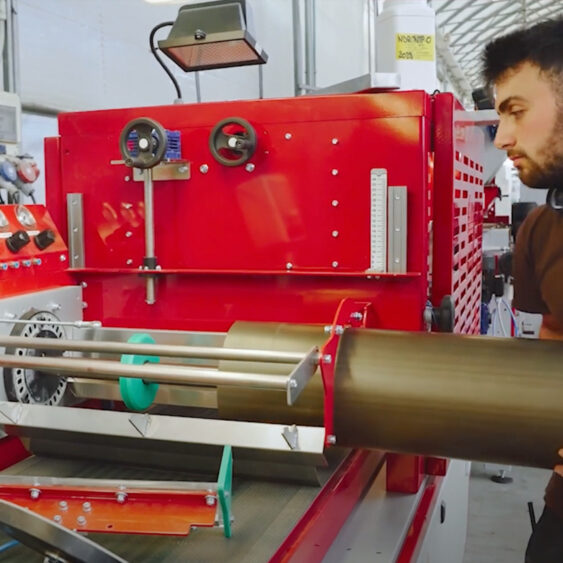

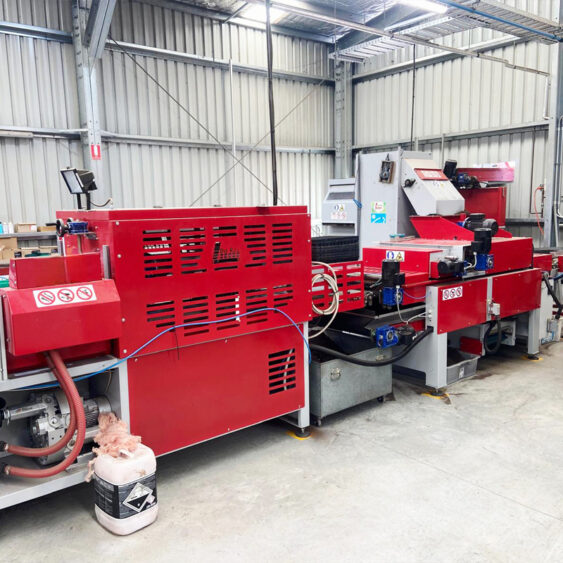

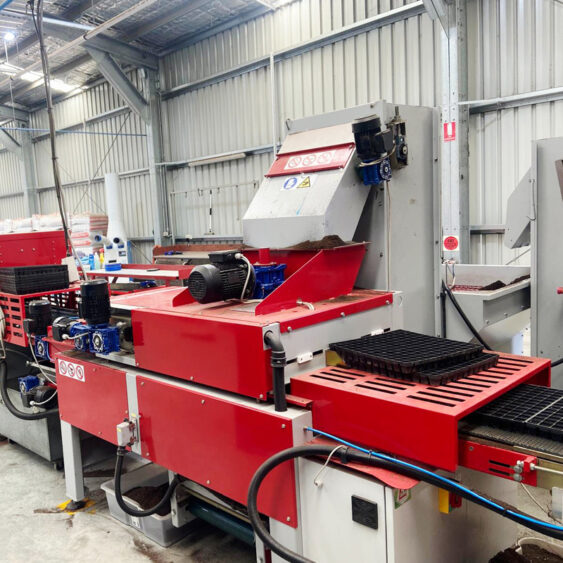

• LR1200 Drum Seeder

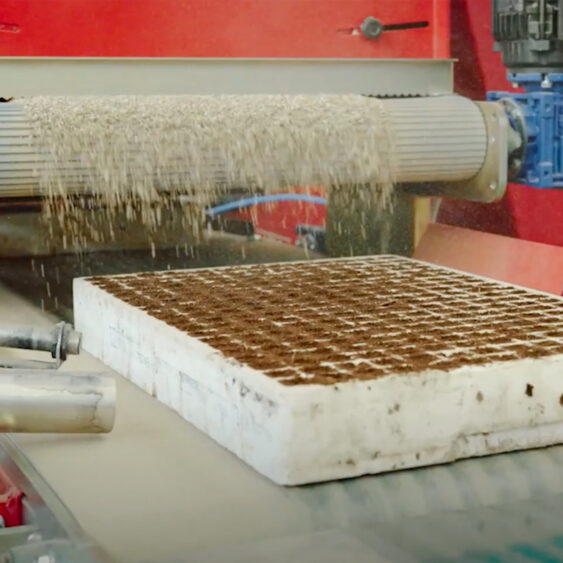

• Covering Unit with automatic recycling. (Suitable for perlite, vermiculite, seedling mix)
• Watering Unit with 6 x watering tubes

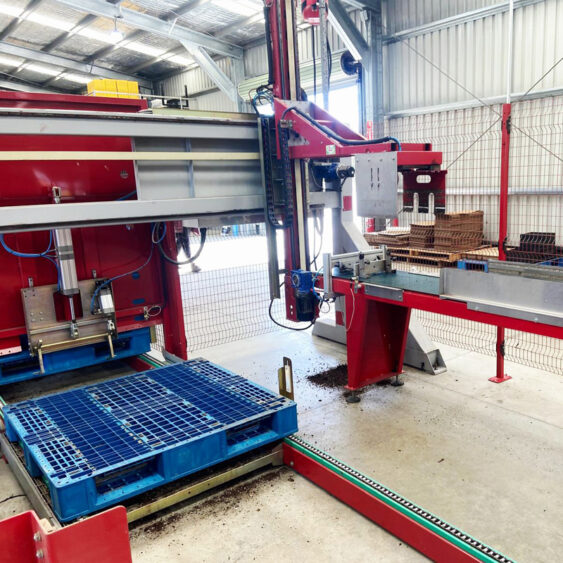

• Tray Stacking Unit

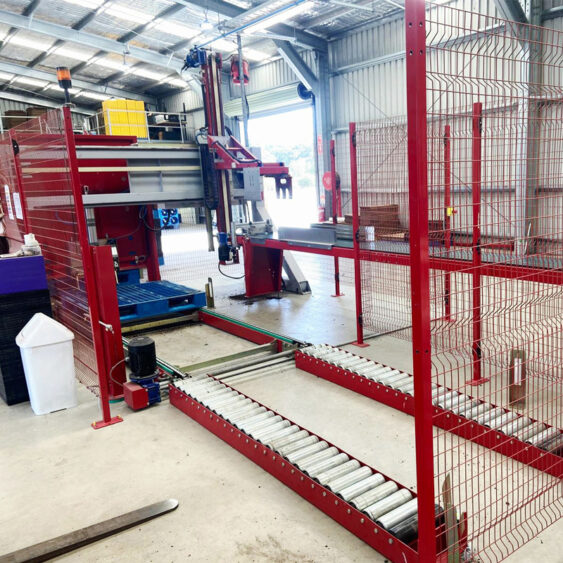

• 3m Stainless Roller Conveyor

OPTIONAL

• Multiple sowing kits (for different tray types)
• Tray De-Stacker for heavy plastic trays
• 3m In-feed conveyor to feed tray de-stacker
• Tray filler with 900L or 2000L hopper
• Covering Unit suitable for sand or pumice
• Other options are available on demand

TECHNICAL DATA:

• Max Tray Dimensions: 700 x 480 x 180mm
• Production Capacity: 200 to 1200 trays per hour (depending on tray and seed type)
• Installed Power: 9.5 kW, 400 V, 3PH+N+E, 50Hz
• Air Consumption: 100 L per minute
• Weight: 2730 kg
