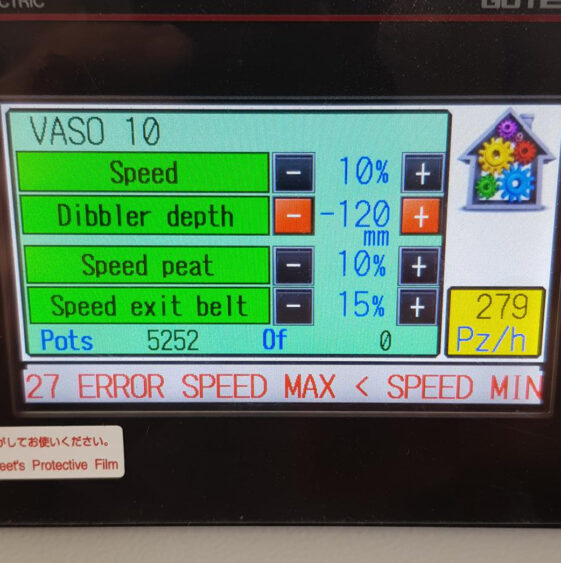

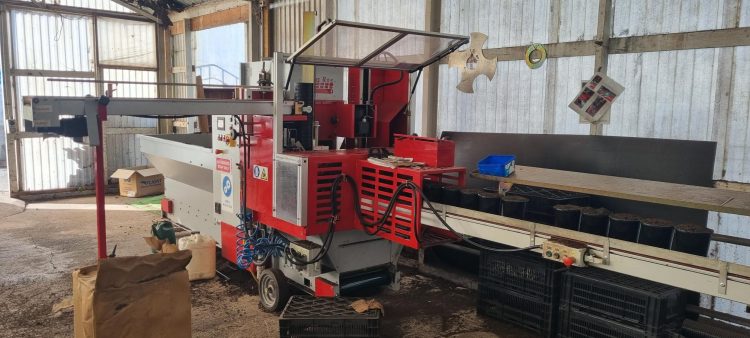

Electronic Potting Machine featuring a colour touchscreen control panel for automatic setting of potting and transplant speed, soil quantity speed, drill direction and depth. The pot take-off conveyor can be positioned left, right (or parallel as per in the image).
Pot change-over is very simple by means of replacing 1 x plate to match the desired pot size. This machine is designed with operator protection in mind with extra safety guards and alarms. It features a pneumatic pot dispenser which works very well for most pot types up to 22cm/6L size.
This machine is simple to use, fast, quiet when operating; and built for medium to large nurseries.

MACHINE COMPOSITION

• 650L hopper
• Pneumatic pot de-nester
• Pot plate disks (for each pot size)
• Drill kit (3 u2013 9cm)
• 3m pot take-off conveyor with 1900mm long tray holder
• 1.6m pot in-feed conveyor

OPTIONAL

• 1000L or 1500L hopper
• Pot take-off conveyor between 3 u2013 6m
• Pot accumulation table at the end of the conveyor
• Wheels for short displacement
• Other options on demand

TECHNICAL DATA:

• Suitable For Round Pots: Between 8 to 22cm or 0.3 to 6L
• Suitable For Square Pots: Between 7 and 15cm
• Production Capacity: 500 to 3000 pot per hour (depending on pot type)
• Air Consumption: 100L per minute
• Installed Power: 2.3 kW, 400 V, 3PH+N+E, 50 Hz
• Weight: 750kg
