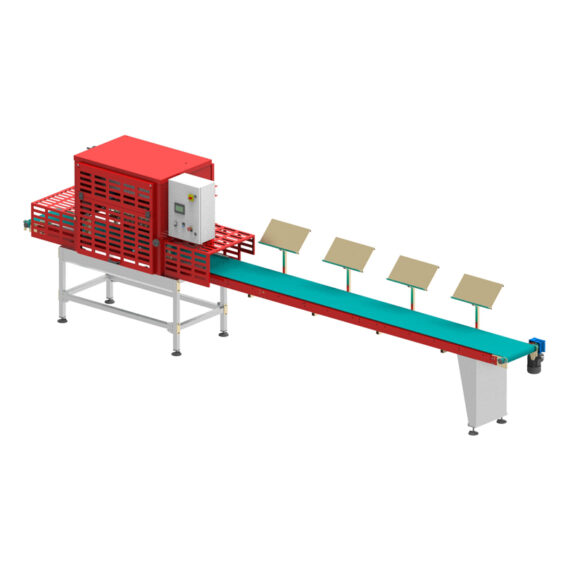

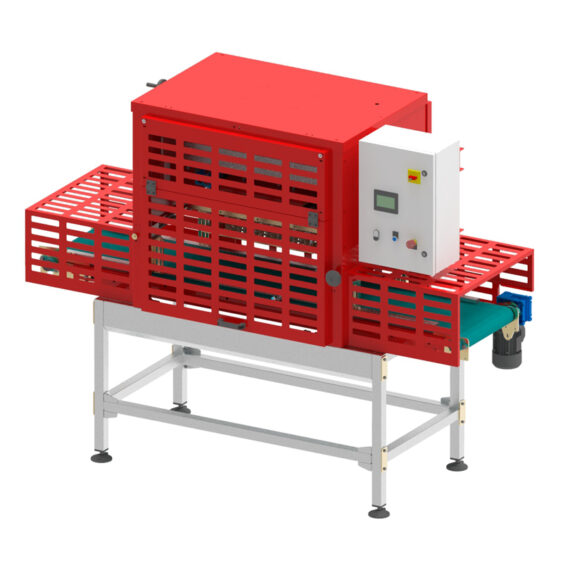

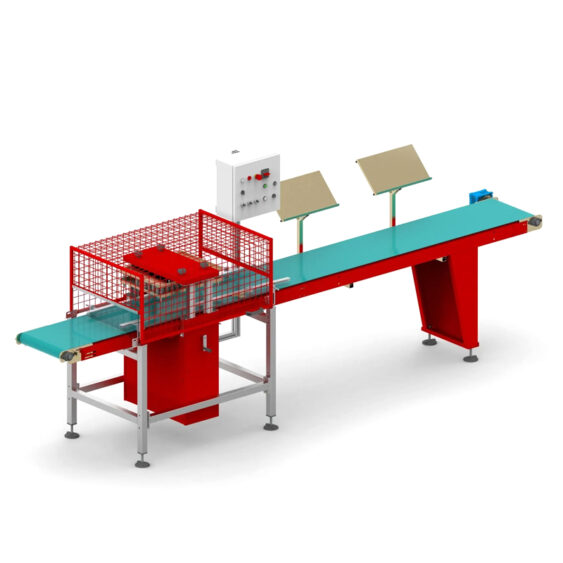

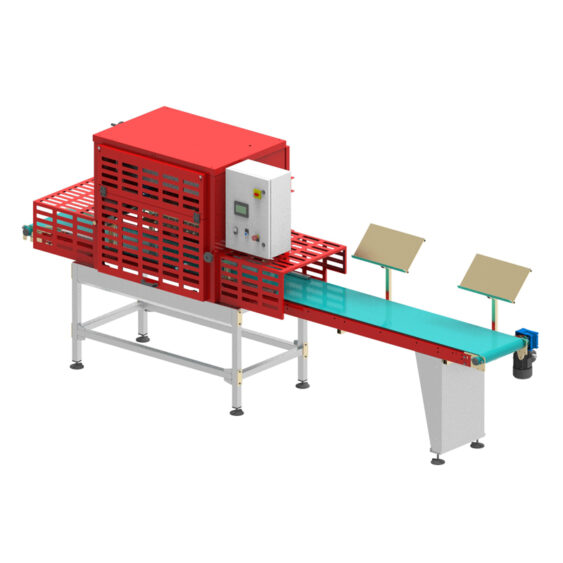

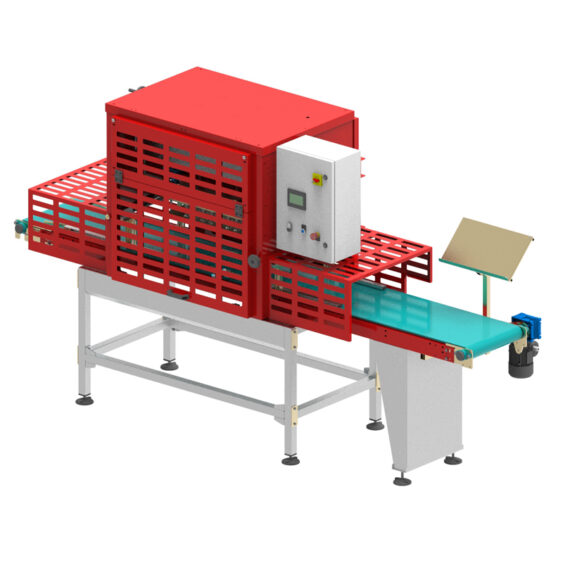

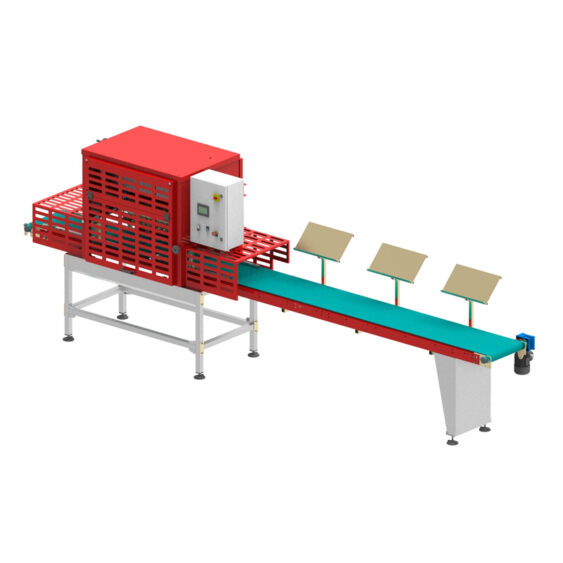

Da Ros Transplanter Belt with Dibbling Station NR4FR-2
# 16-DARTRANR4FR-4
The Da Ros Transplanter Belt with Dibbling Station NR4FR-2 is a highly efficient solution for streamlining the transplanting of seedlings into larger cell trays. Widely respected by commercial growers, this system improves productivity, reduces labour costs and supports uniform planting for healthier plant development.
This system is ideal where fully Automatic Transplanters are not suitable. For example, when transplanting seedlings from open community trays or when dealing with inconsistent germination. It provides the most cost-effective solution for automating the transplanting process into a smaller range of pots and trays (40mm–100mm diameter), without the need to invest in a fully automated transplanter machine.
The integrated dibbling station creates precise holes in the growing media before transplanting. This ensures consistent planting depth, spacing and alignment, promoting strong root establishment and improved crop uniformity. Automation significantly increases transplanting speed while reducing manual handling, helping nurseries scale production efficiently.
Designed for gentle seedling handling, the NR4FR-2 minimises transplant shock and contributes to higher survival rates. Tray speed is electronically controlled, and the number of workstations can be configured depending on belt length. Dibbling heads can be quickly swapped to accommodate different tray formats, including our popular 28T forestry trays.
PrimeHort can provide installation, staff training and ongoing technical support through our specialised automation team.
KEY FEATURES
MACHINE COMPOSITION
ACCESSORIES
TECHNICAL DATA
This system is ideal where fully Automatic Transplanters are not suitable. For example, when transplanting seedlings from open community trays or when dealing with inconsistent germination. It provides the most cost-effective solution for automating the transplanting process into a smaller range of pots and trays (40mm–100mm diameter), without the need to invest in a fully automated transplanter machine.
The integrated dibbling station creates precise holes in the growing media before transplanting. This ensures consistent planting depth, spacing and alignment, promoting strong root establishment and improved crop uniformity. Automation significantly increases transplanting speed while reducing manual handling, helping nurseries scale production efficiently.
Designed for gentle seedling handling, the NR4FR-2 minimises transplant shock and contributes to higher survival rates. Tray speed is electronically controlled, and the number of workstations can be configured depending on belt length. Dibbling heads can be quickly swapped to accommodate different tray formats, including our popular 28T forestry trays.
PrimeHort can provide installation, staff training and ongoing technical support through our specialised automation team.
KEY FEATURES
- Automated transplanting with integrated dibbling station
- Ensures uniform planting depth, spacing and alignment
- Electronic tray speed control
- Configurable belt lengths and workstations
- Quick-change dibbling plates for multiple tray formats
- Gentle handling to reduce transplant shock
- Suitable for high-volume commercial nursery operations
MACHINE COMPOSITION
- Tray transport belt
- Belt (various lengths available) with dibbling plate (fixed or rotating)
- Pneumatic flat dibbler
- Work station
ACCESSORIES
- Dibbling plate with fixed pins mod. PF
- Dibbling plate with drills mod. PFR
- Tray holder for young plants mod. PC1
- Plug poppers available in stock
TECHNICAL DATA
- Production capacity: 130–500 trays per hour
- Maximum tray size: 600 x 400 x 130 mm
- Installed power: 0.37kW, 230V, single phase, 50Hz
- Air consumption: 20–50L per minute

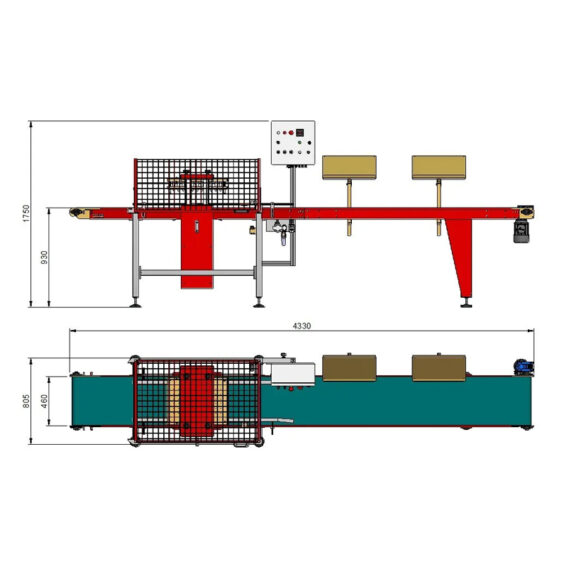

- Belt lengths: 2.3m, 3.3m, 4.3m, 5.3m, 6.3m
- Work stations: 1–6
- Weight: 180–280kg
